Data MatrixΒΆ

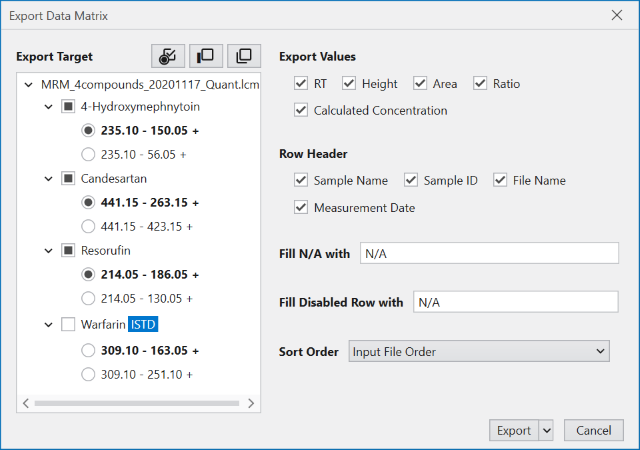

Selecting [File] - [Export Data Matrix] opens
the Export Data Matrix window shown below.
Data Matrix is a format prepared to be used as input data
for statistical analysis software to examine
differences between samples.
In the left half of this window,
select the compounds and transitions to be exported.
When the window is displayed,
the primary transition of the compound (target compound)
without the internal standards (ISTDs) is selected.
Select the compounds and transitions to be exported
by directly changing the check boxes or
by using the buttons at the top of the window.
The operations of the buttons are the same as in the
Result Table.
In the right half of the window,
the elements set in
Export Conditions are entered.
See Export Conditions
for more information on input values.
Click the arrow to the right of the Export button
to select the export file format.
Choose from Excel (.xlsx), comma-separated file format (.csv),
and tab-separated text (.txt).
